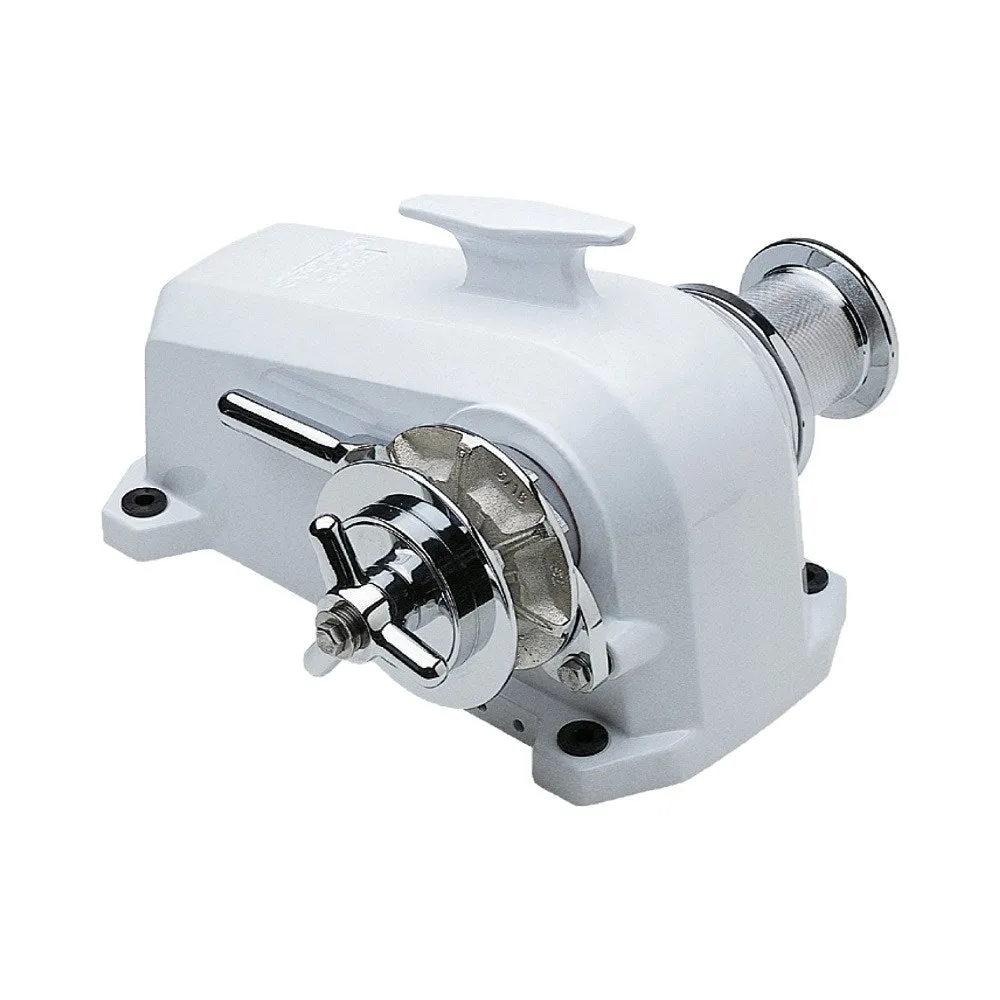

Muir HR3500 Jaguar Compact Horizontal Windlass
- Rope chain combination gypsy for rope & chain combination or chain only
- Manual Override System (MORS)
- Gypsy lock / pawl
- Cleat on housing
- Heavy duty dual direction motor in 12 Vdc, 24 Vdc & Hydraulic
- Durable marine grade white gloss finish alloy housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- Stainless steel drive shaft
- Cone clutch/brake
- Shaft seal
- Clutch release handle
- Installation / Operation booklet
Vessel Length | 14 - 20 m (45 - 65 ft) |
Power Supply | 12 / 24 Vdc |
Motor | 1500 W |
Hydraulic Pressure | 10 MPa (1450 psi) |
Hydraulic Flow | 28 L/min (7.5 gal/min) |
Max Load | 1590 kg (3500 lb) |
Work Load | 400 kg (800 lb) |
Amps Work Load | 150 / 85 |
Max Line Speed | 15 m / min (48 ft / min) |
Chain Size | 8 - 10 - 13 mm (5/16 - 3/8 - 3/4”) |
Rope Size | Rope can also be used but is not recommended for larger vessels |
Net Weight | DC 58 kg (128 lb) HYD 57 kg (125 lb) |
Manual Operation | MORS (Standard) |
