Please contact us ( ) or use the form above for price quote.
*** Worldwide drop-ship directly from factory ***
Please include information like your intended voltage (or hydraulic type) and size of your chain.

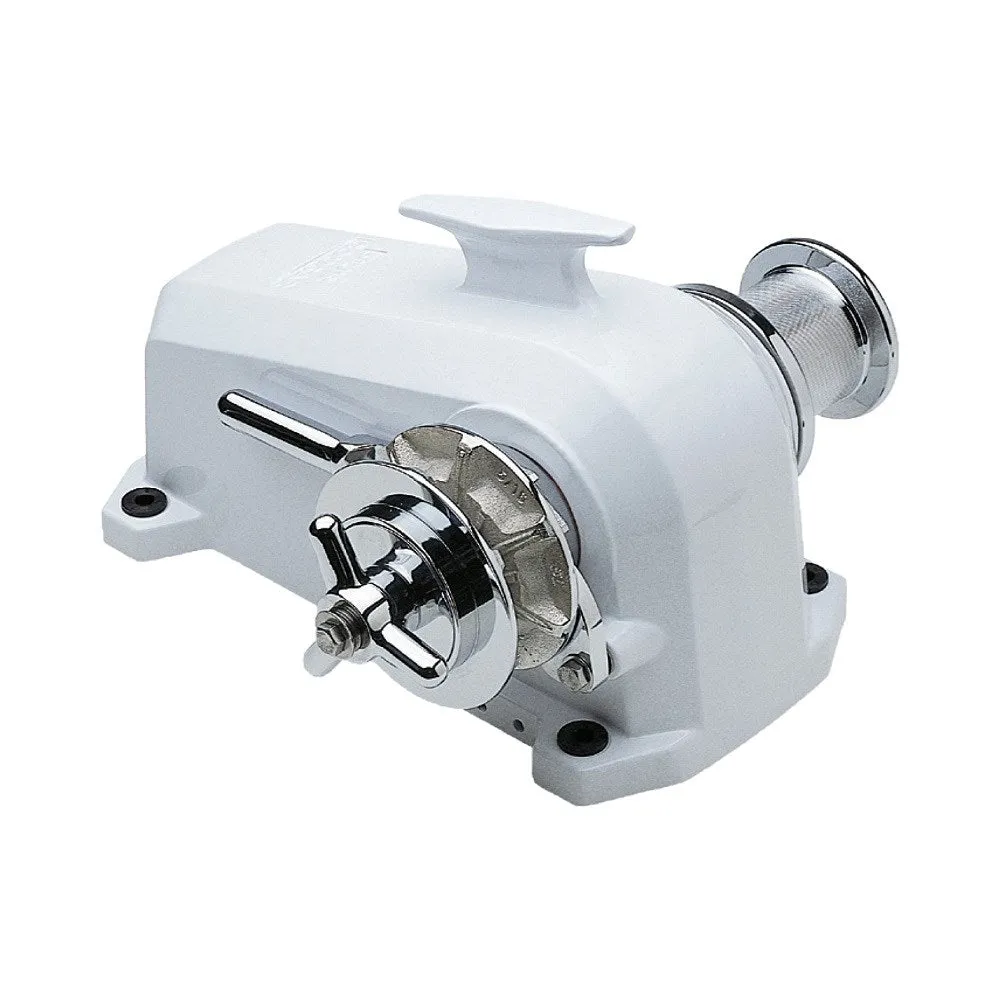

Muir Thor HR4000 Compact Horizontal Windlass
- Rope chain combination gypsy for rope & chain combination or chain only
- Manual Override System (MORS)
- Gypsy lock / pawl
- Cleat on housing
- Heavy duty dual direction motor in 24 Vdc & Hydraulic
- Durable marine grade white gloss finish alloy housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze / 316 Stainless steel running gear
- Stainless steel drive shaft
- Cone clutch/brake
- Shaft seal
- Clutch release handle
- Installation / Operation booklet
Vessel Length | 18 - 25 m (58 - 80 ft) |
Power Supply | 24 Vdc |
Motor | 2000 W |
Hydraulic Pressure | 12 MPa (1750 psi) |
Hydraulic Flow | 28 L/min (7.5 gal/min) |
Max Load | 2045 kg (4500 lb) |
Work Load | 500 kg (1100 lb) |
Amps Work Load | 120 |
Max Line Speed | 13.5 m / min (44 ft / min) |
Chain Size | 10 - 13 - 16 mm (3/8 - ½ - 5/8”) |
Rope Size | Rope can also be used but is not recommended for larger vessels |
Net Weight | DC 64 kg (140 lb) HYD 63 kg (139 lb) |
Manual Operation | MORS (Standard) |
