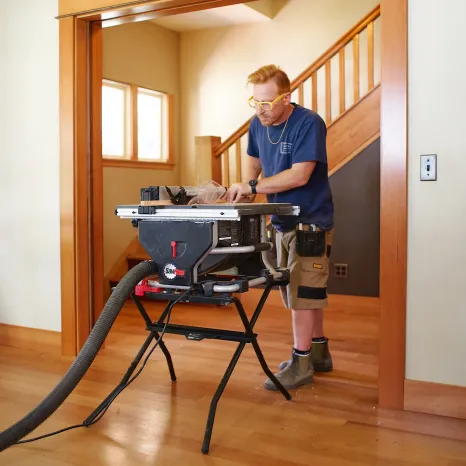

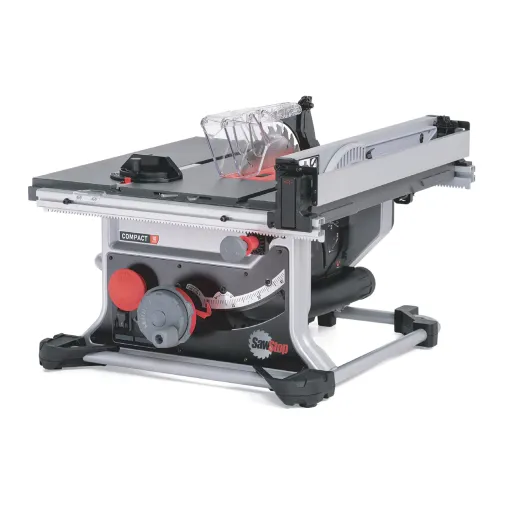

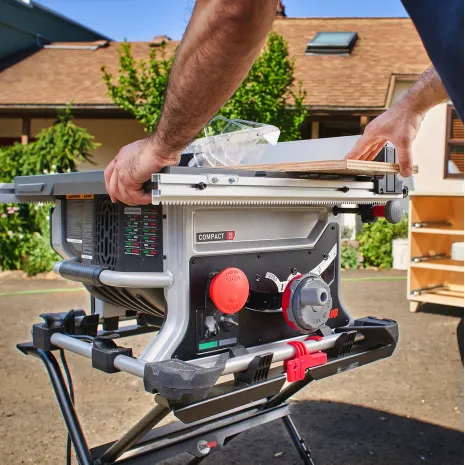

The SawStop Compact Table Saw provides power, precision, cut capacity, and safety to every job site.
Note: unlike other SawStop table saws, this saw is not compatible with dado blades.
- Patented SawStop safety system: The brake system stops the blade on contact with skin in less than 5 milliseconds and drops it below the table, minimizing a potentially life-altering injury to a mere scratch.
- Rack and pinion fence with high/low shelf: The fence easily adjusts for rip cuts up to 25-1/2 inches and doesn't skew. The built-in high and low shelf supports all kinds of cuts.
- Quick-tilt blade bevel with micro adjustment: The angle of the blade can quickly and easily be adjusted with just one hand. The micro-adjust knob allows fine-tuning of the angle.

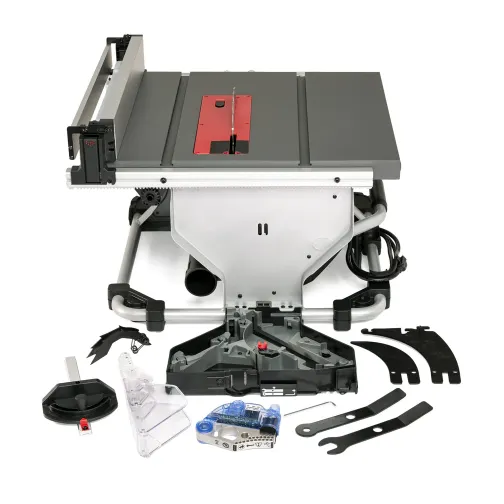

- Onboard storage: Keep accessories with the tool at all times. Storage is includes for the following items: mitre gauge, 3 mm hex key, 2x blade wrenches, and blade guard with spreader and anti-kickback pawls.
- Uses SawStop TSBC-10R3 brake cartridges.
Specifications
- 120 VAC, 60Hz universal motor
- 15A
- 4,000 no-load RPM
- 10 inch blade
- 3-1/8 inch maximum depth of cut at 0 degrees
- 2-1/8 inch maximum depth of cut at 45 degrees
- 25-1/2 inch maximum rip capacity
- 68 pounds
- 1-year warranty
