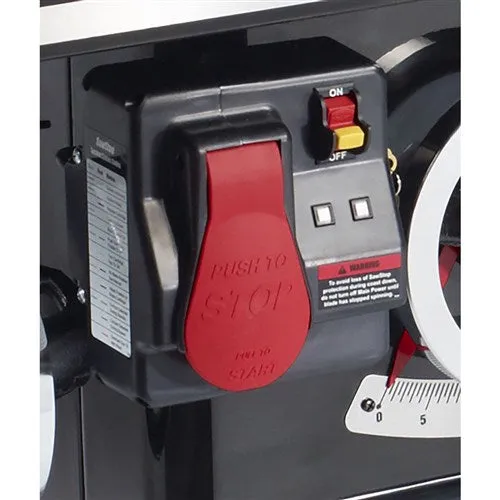

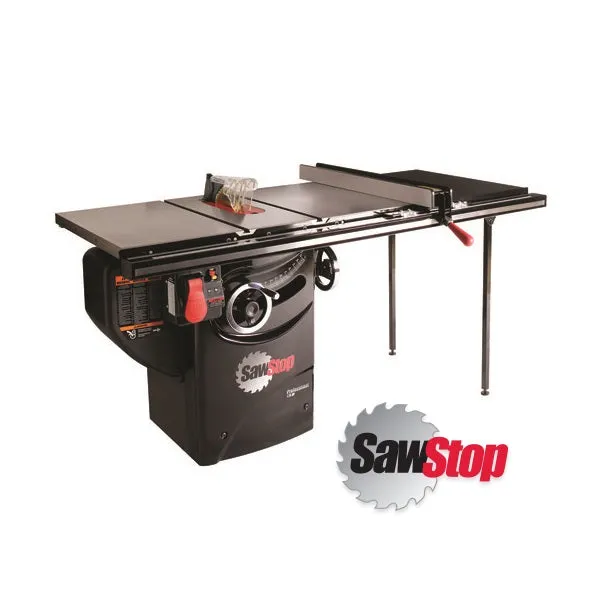

The SawStop 10" Professional Cabinet Saw PCS175-TGP236 provides superior performance to meet the demands of discerning craftsmen and woodworkers. With SawStop's legendary safety system, ground breaking dust collection and flawless fit and finish it's ready to help you get the job done.
Table Saw Specs:
- Overall saw dimensions: 61-3/4" x 31-1/8" x 34"
- Cabinet footprint: 19-3/8" x 19-3/8"
- Cast-iron table size with extension wings: 44" w x 27" d
- Motor: 1-3/4 HP, 1-phase, 110V, 14A
- Weight: 367 lbs.
- Blade: 40-tooth, professional grade, 5/8" arbor
- Blade diameter: 10"
- Blade tilt: left
- Max. depth of cut, blade at 0: 3-1/8"
- Max. depth of cut, blade at 45: 2-1/4"
- Max. rip, left of blade: 12"
- Dado diameter: 8" (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16"
- Arbor diameter at blade: 5/8"
- Table in front of blade (max. elevation): 10-1/4"
- Table behind blade (max. elevation): 7-1/2"
- Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
- Dust-collection port diameter: 4"
- Riving knife/splitter thickness: 0.078" (2mm)
- Blade guard: polycarbonate, extends only 5/8" to right of blade
- Belts: 2 V-ribbed belts - arbor belt is static dissipative
