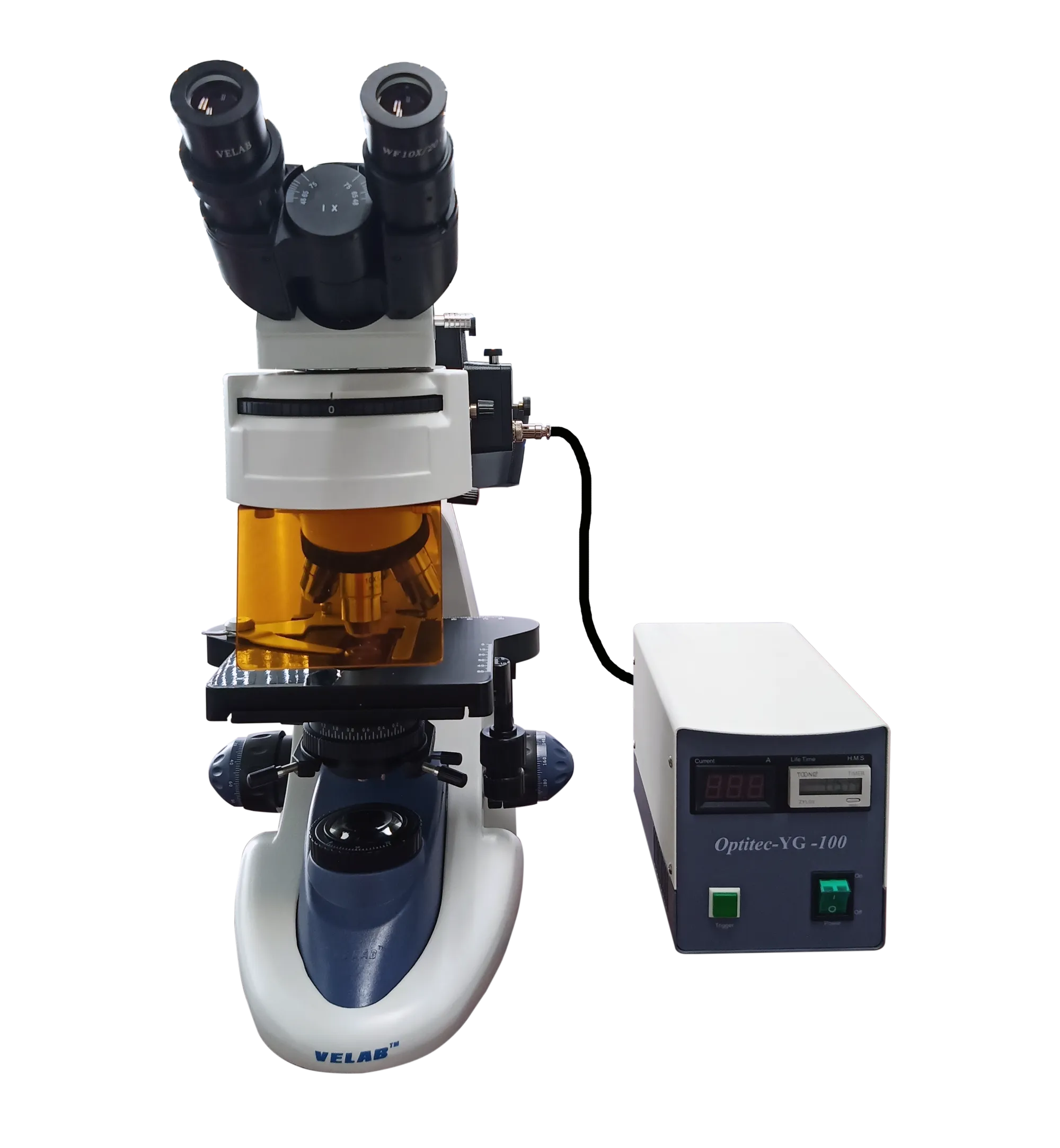

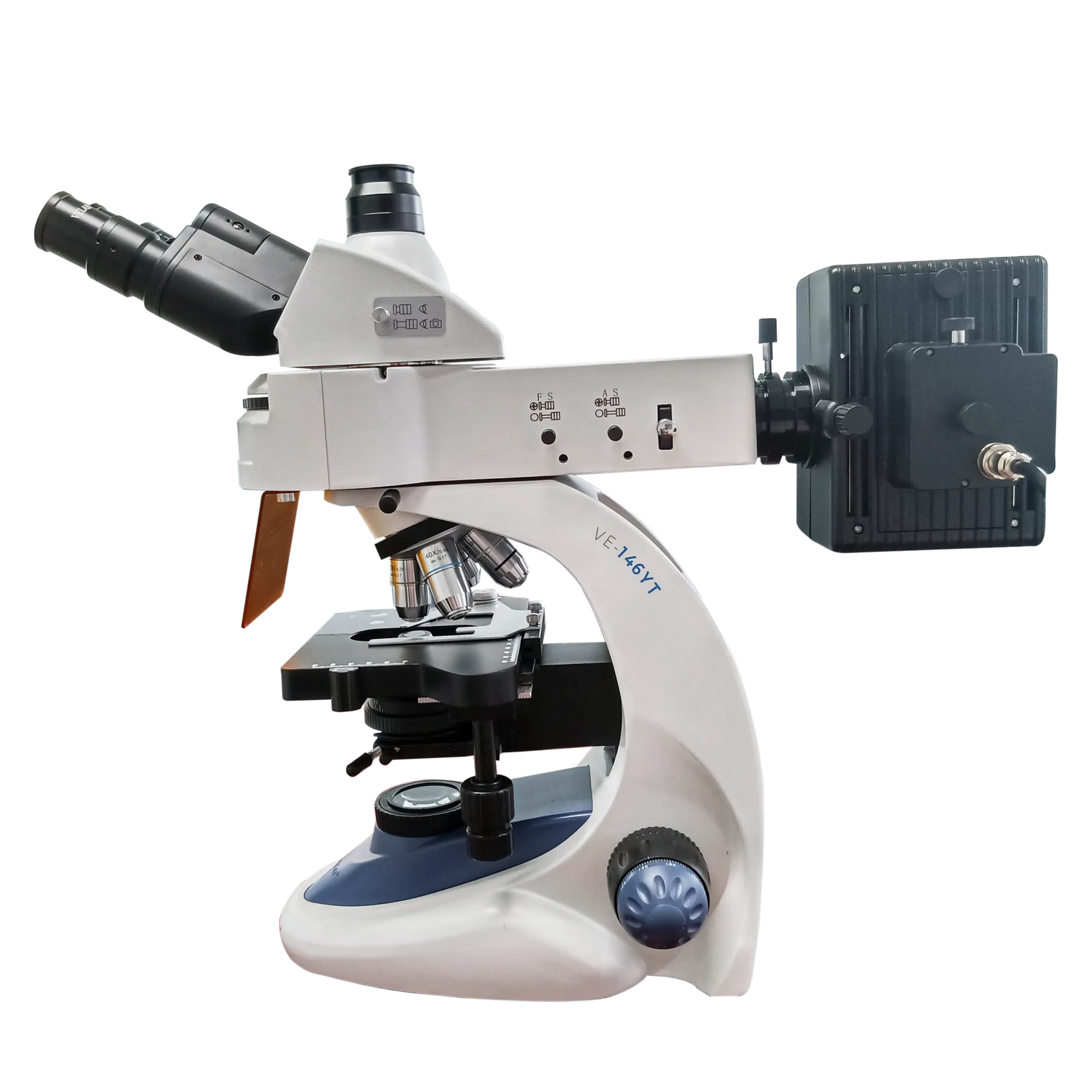

Trinocular fluorescence microscope with yellow-green observation effects on B-band with applicable ranges for FITC, acridine orange and auramine O. G-band red color with applicable ranges for TRITC, rhodamine B200 and propidium iodide. The VE-146 is used in the diagnosis of diseases, biochemistry, neurology, molecular biology, genetics, microbiology and research.
Especifications
| Eyepieces | WF10X/20 mm |
| Nosepieces | Quadruple |
| Objectives | 4X, 10X, 40X (S), 100X (S) (oil) |
| Optical System | Infinity-Corrected Achromatic |
| Stage | Double layer with coaxial movement X-Y 152 x 132 mm / 5.9” x 5.1”. |
| Condenser | AAbbe, N.A 1.25 with elevator. |
| Diaphragm | Iris type with filter holder. |
| Focus | Coarse and fine anti-slip control knob. |

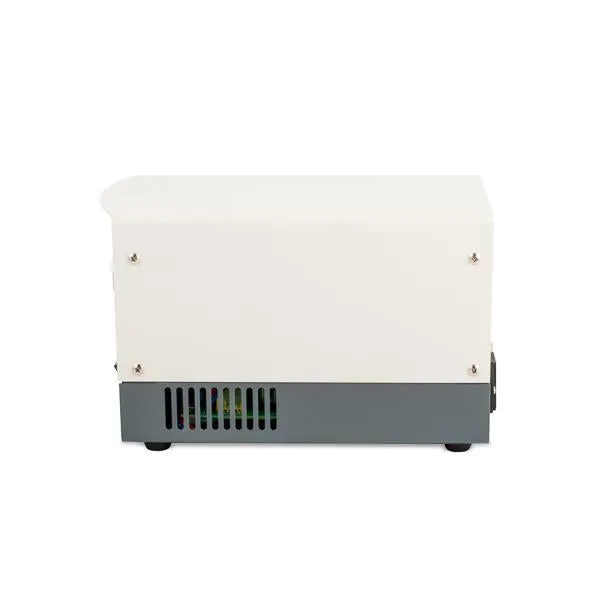

| Ilumination | Kohler Halgen 12V/30W and Epi-Fluorescence by mercury-vapor lamp 100W. |
| Dimensions | 180 x 485 x 540 mm / 7” x 19” x 21” |
| Power supply | 110/240V, 50/60 Hz AC adapter |
| Main Features | Objectives with colored rings. Trinocular head Siendentopf type. Objectives with color rings. Head inclined at 30 ° and rotatable 360 ° Stage with vernier, millimeter scale, caliper and stop with height adjustment. Mercury Vapor Fluorescence Epi-Kohler Illumination. Stative, robust, reinforced and easy to transport. Illumination with field diaphragm in the lamp. Interpupillary distance of 48 ~ 75 mm. Head adapted to fluorescent illuminator and filter box with bands B, G and position for bright field observation. Fluorescence filters: B: 450 - 490 nm, G: 510 - 560 nm. Phototube with 23 mm diameter, compatible with VELAB series MC, LX cameras and VE-SCOPEPAD model tablet |
| Applications | Clinical |
| Accessories Included | Power cord Blue, green and yellow filter. Power supply. Dust cover Mercury lamp. |
| Warranty | 10 years |
