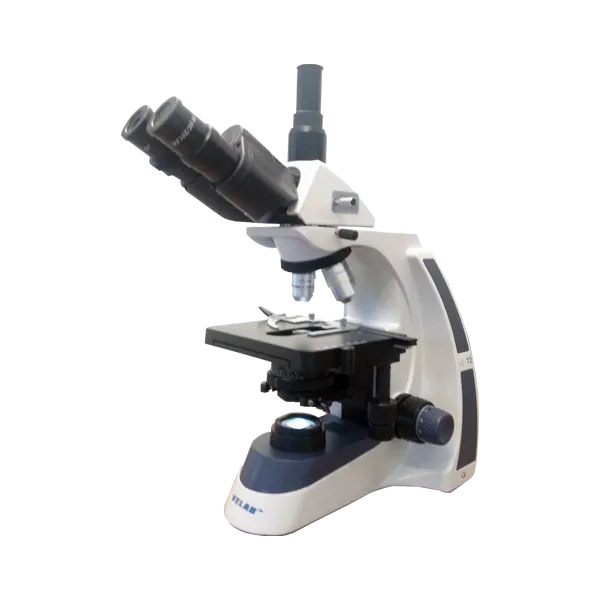

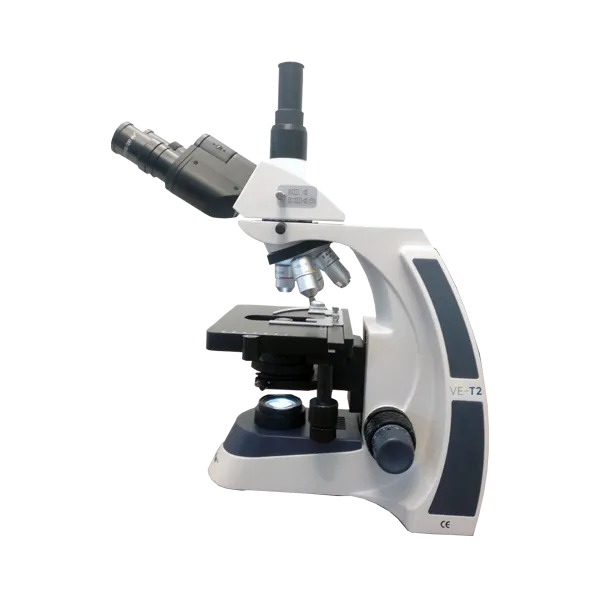

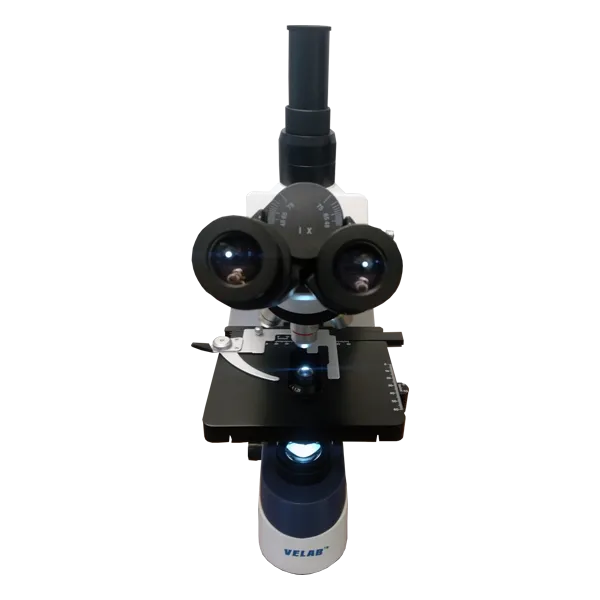

The VE-T2 trinocular microscope is ideal for higher education and routine work in clinical research and laboratories.
Its eyepieces provide a wide field of observation and its third eyepiece makes it the ideal device adaptable to multiple image and video documentation devices.
Thanks to its rechargeable batteries, the VE-T2 is a portable device that offers 4 hours of continuous use.
Especifications
| Eyepieces | WF 10X/20 mm |
| Nosepieces | Quadruple. |
| Objectives | 4X, 10X, 40X (S), 100X (oil) (S) |
| Optical System | Achromatic |
| Stage | Double layer with coaxial movement X-Y 160 x 140 mm / 6.2” x 5.5”. |
| Condenser | Abbe, N.A 1.25 with elevator. |
| Diaphragm | Iris type |
| Focus | Coarse and fine anti-slip control knob. |
| Ilumination | LED |
| Dimensions | 200 x 430 x 270 mm / 7.8” x 16.9” x 10.6” |
| Power supply | Three 1.2V AA rechargeable batteries (included). |
| Main Features | Diopter adjustment in one eyepiece. Siedentopf type Trinocular Head. Head inclined at 30 ° and rotatable 360 °. Interpupillary distance of 48 ~ 75 mm. Objectives with colored rings. Stative, robust, reinforced and easy to transport. Lighting with intensity adjustment. Rechargeable batteries incorporated into the stand. Stage with vernier, millimeter scale, caliper and stop with height adjustment. 23mm diameter phototube, compatible with VELAB MC, LX series cameras and VE-SCOPEPAD tablet |
| Applications | Education: Upper grade levels |
| Accessories Included | AC/CD Adapter |
| Warranty | 10 years |
